Juwel TESM Multi Torque Nutrunner
The TEMS range of Juwel Nutrunners is a well established range of tools. With a torque range from 150 Nm to 5,000 Nm.
110V or 230V models available
Description
The TEWS range of Juwel Nutrunners is a well established range of tools. With a torque range from 150 Nm to 5,000 Nm.
FEATURES
- Freely turning drive unit
- Quick and precise
- 2-step gear ri./le.
- 200 torque settings
- Modular build with bearings for continuous use
- With a torque deactivation system with an accuracy of +/- 3.5% at consistent screwing application
- Quick, precise, safe and low-noise
- Devices available in 230 Volt and 110 Volt versions
- Newly designed drive motor characterised by its robust and maintenance-friendly structure as well as by high performance reserves
- Right- and left-ward rotation and a 2-step gear; adjustable with 200 torque settings
- Any position of the operating unit possible; drive motor can be freely turned by 360°, which ensures comfortable positioning of the device on the screw connection
- Can optionally be either with a load release. This leads to independent loosening of the torsion between the push-on socket and the support. The drive motor briefly turns into the opposite direction for this. This option is indispensable for short assembly times and offers best work safety.
Please wait while flipbook is loading. For more related info, FAQs and issues please refer to DearFlip WordPress Flipbook Plugin Help documentation.
Documentation
Please wait while flipbook is loading. For more related info, FAQs and issues please refer to DearFlip WordPress Flipbook Plugin Help documentation.

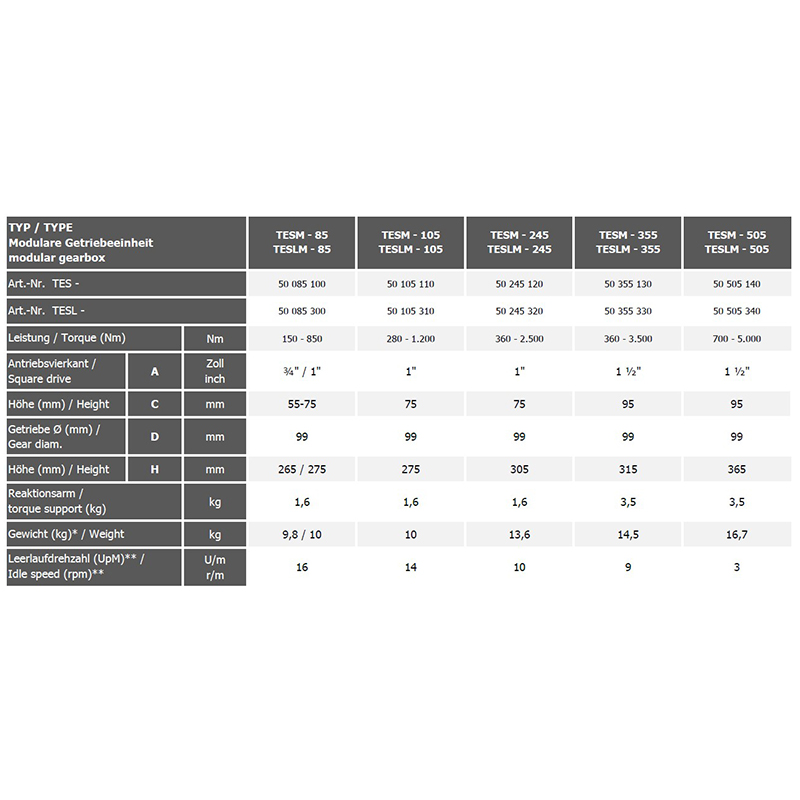

Model
| Typ/Type | TESM-84 | TESM-104/105 | TESM-244/245 | TESM-354/355 | TESM-505 |
| Antriebsvierkant/Square drive A | 3/4″ / 1″ | 1″ | 1″ | 1 1/2″ | 1 1/2″ |
| Artikelnummer Schwerlast/ Item number heavy load |
– | 50 105 113 | 50 245 123 | 50 355 133 | 50 505 140 |
| Artikelnummer Standard/ Item number standard |
50 084 103 | 50 104 113 | 50 244 123 | 50 354 133 | – |
| Drehmoment/Torque (Nm) | 150 – 850 | 280 – 1.200 | 360 – 2.500 | 360 – 3.500 | 700 – 5.000 |
| Gewicht Abstützung/ Weight reaction arm (kg) |
1.6 | 1.6 | 1.6 | 3.5 | 3.5 |
| Gewicht Standard/ Weight Standard (kg) |
9,8/10 | 10 | 12.5 | 13.4 | – |
| Gewicht Schwerlast/ Weight heavy load (kg) |
– | 11.1 | 13.6 | 14.5 | 16.7 |
| Höhe/Height C (mm) | 55-75 | 75 | 75 | 95 | 95 |
| Höhe/Height H (mm) | 265/275 | 275 | 305 | 315 | 365 |
| Leerlaufdrehzahl (U/min)/ Idle speed (r/min) |
16 | 14 | 10 | 9 | 3 |
| Ø Getriebe Schwerlast/ Gear heavy load D (mm) |
– | 99 | 99 | 99 | 99 |
| Ø Getriebe Standard/ Gear standard D (mm) |
88 | 88 | 88 | 88 | – |
