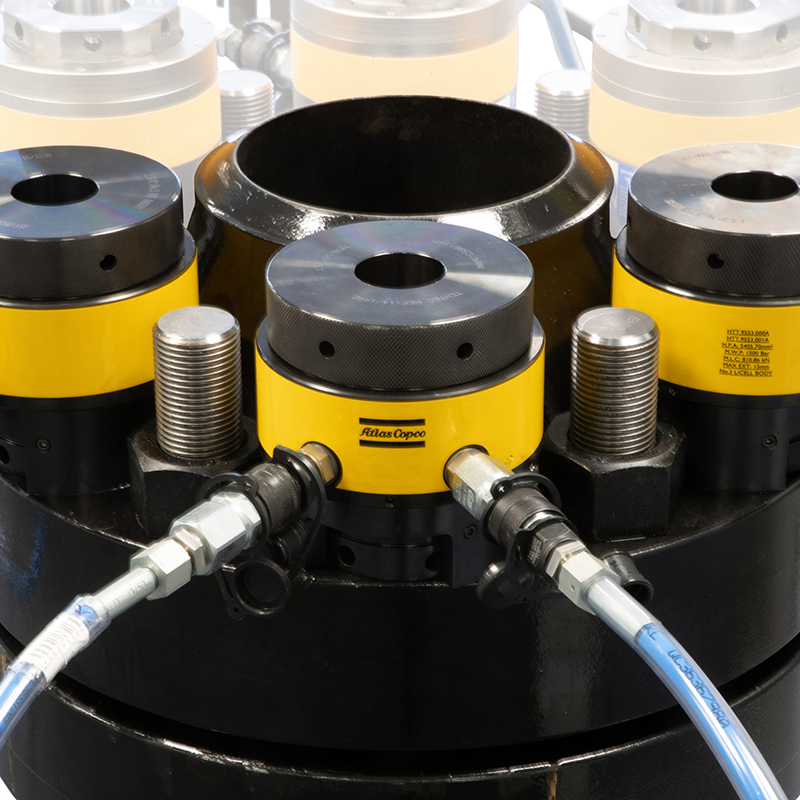

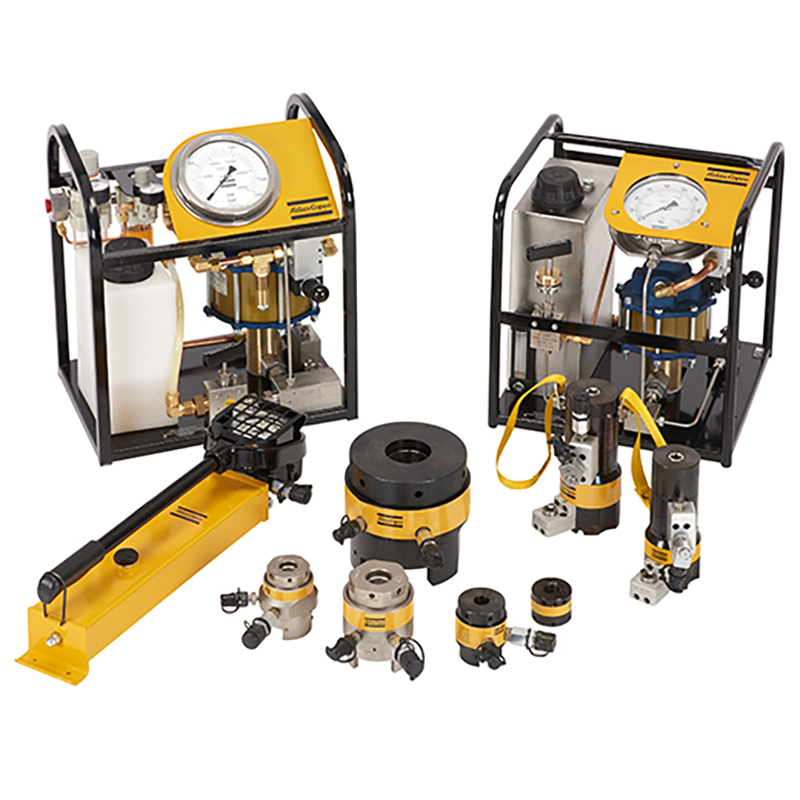

Atlas Copco CTST Topside Bolt Tensioners
The Topside tensioner CTST is reliable, economical and dependable insert type hydraulic tensioner that is proven in the marketplace.
Standard Range from M20-M100 /3/4″-10UNC – 4″-8UN with load output to 2643kN.
Description
The tool is designed to fit on to most ANSI B16.5, ANSI B16.47 Series 1, MSS-SP44, API-6A and API17D flanges. Simple to use and designed to fit many applications, each base tool can be converted for use on a different bolt size by the use of conversion kits.
Benefits
- Faster – Piston return more than twice as fast as spring assisted tensioners.
- Lighter – A 20% weight saving versus spring assisted equivalents reduces operator fatigue.
- Sustainable – Enhanced corrosion protection for harsh environments.
- Interchangeable – Airbac tools feature the same load output, bridges and NRS as the CTST range.
Please wait while flipbook is loading. For more related info, FAQs and issues please refer to DearFlip WordPress Flipbook Plugin Help documentation.
Documentation
Please wait while flipbook is loading. For more related info, FAQs and issues please refer to DearFlip WordPress Flipbook Plugin Help documentation.
Model
| Tool | Manufacturer | Part Number | Size | Bolt Load | |
| Metric | Imperial | Kn | |||
| CTST No 1 | Atlas Copco Topside Tensioner | HTT.9551 | M20 x 2.5 | 3/4”-10UNC | 227.81 |
| M22 x 2.5 | 7/8”-9UNC | ||||
| M24 x 3 | 1”-8UN | ||||
| M27 x 3 | 1.1/8-8UN | ||||
| CTST No 2 | Atlas Copco Topside Tensioner | HTT.9552 | M27 x 3 | 1.1/8-8UN | 443 |
| M30 x 3.5 | |||||
| M33 x 3.5 | 1.1/4-8UN | ||||
| M36 x 4 | 1.3/8-8UN | ||||
| M39 x 4 | 1.1/2-8UN | ||||
| CTST No 3 | Atlas Copco Topside Tensioner | HTT.9553 | M39 x 4 | 1.1/2-8UN | 810.85 |
| M42 x 4.5 | 1.5/8-8UN | ||||
| M45 x 4.5 | 1.3/4-8UN | ||||
| M48 x 5 | 1.7/8-8UN | ||||
| M52 x 5 | 2″-8UN | ||||
| CTST No 4 | Atlas Copco Topside Tensioner | HTT.9554 | M48 x 5 | 1.7/8-8UN | 1273.16 |
| M52 x 5 | 2″-8UN | ||||
| M56 x 5.5 | 2.1/4 -8UN | ||||
| M60 x 5.5 | |||||
| M64 x 6 | 2.1/2″-8UN | ||||
| CTST No 5 | Atlas Copco Topside Tensioner | HTT.9555 | M64 x 6 | 2.1/2″-8UN | 1829.99 |
| M68 x 6 | |||||
| M72 x 6 | 2.3/47″-8UN | ||||
| M76 x 6 | 3″-8UN | ||||
| CTST No 5 | Atlas Copco Topside Tensioner | HTT.9555 | M76 x 6 | 3″-8UN | 2643.43 |
| M80 x 6 | |||||
| M85 x 6 | 3.1/4-8UN | ||||
| M90 x 6 | 3.1/2-8UN | ||||
| M95 x 6 | 3.3/4-8UN | ||||
| M100 x 6 | 4″-8UN |
